PDC cutter 1308/1313 for PDC drill bits for oil and gas drilling

 PDC Cutter 1308/1313 for Oil and Gas Drilling  PDC bits   Wuhan Reetec Diamond Co., Ltd was established on December 28, 2002.       The main products are PDC cutters and top dome PDC inserts are widely used in petroleum geological drilling and exploration, coal mining, road and bridge eng

Featured Products

 PDC Cutter 1308/1313 for Oil and Gas Drilling  PDC bits

   Wuhan Reetec Diamond Co., Ltd was established on December 28, 2002.

  The main products are PDC cutters and top dome PDC inserts are widely used in petroleum geological drilling and exploration, coal mining, road and bridge engineering excavation..

PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits



PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits

1. Quick Details

Place of Origin: Wuhan, China
Brand Name: REETEC
Model Number: 1308/1313/1613/1616/1916/1919
Type: PDC Cutter
Machine Type: Drilling Tool Parts
Certification: ISO9001-2008
Material: Tungsten Carbide, Diamond,
PDC Cutter Use: Oil/Gas/Well/Geological Drilling



Advantages:
1. More than 17 years PDC Manufacturing experience
2. Diamond layer 2.2±0.2mm.
3. A lab including VTL machine, impact tester and thermal stability machine to test the PDC Cutter performance.
4. Efficient field data to support PDC cutter research.
5. Low cost workers.
6. We have only produced PDC products.


Conditions:
Abrasive Condition, Hard Condition

Packaging Details
Plastic Box

Delivery Time
In two weeks after payment

2. PDC Cutter Specification


PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits
PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits


Product Type  mmDiameterHeightDiamond Layer ThicknessApplication
130813.44±0.03mm8±0.1mm 2.0±0.2mmTRA / Soft condition/Gage PDC
131313.44±0.03mm13±0.1mm 2.0 ±0.2mm
161315.88/16.00±0.03mm13±0.1mm 2.0 ±0.2mm
161615.88/16.00±0.03mm16±0.1mm 2.0 ±0.2mm
191619.05±0.03mm16±0.1mm 2.0±0.2mm
130813.44±0.03mm8±0.1mm 2.3±0.2mmTC /impact/Medium- hard condition/ Nose and shoulder PDC
131313.44±0.03mm13±0.1mm 2.3 ±0.2mm
161315.88/16.00±0.03mm13±0.1mm 2.3 ±0.2mm
161615.88/16.00±0.03mm16±0.1mm 2.3 ±0.2mm
191619.05±0.03mm16±0.1mm 2.3±0.2mm
130813.44±0.03mm8±0.1mm 2.3±0.2mmTD/Abrasive/Medium- hard condition/ Nose and shoulder PDC
131313.44±0.03mm13±0.1mm 2.3 ±0.2mm
161315.88/16.00±0.03mm13±0.1mm 2.3 ±0.2mm
161615.88/16.00±0.03mm16±0.1mm 2.3 ±0.2mm
191619.05±0.03mm16±0.1mm 2.3±0.2mm
130813.44±0.03mm8±0.1mm 2.3±0.2mmTH/ Super High Pressure PDC
131313.44±0.03mm13±0.1mm 2.3 ±0.2mm
161315.88/16.00±0.03mm13±0.1mm 2.3 ±0.2mm
161615.88/16.00±0.03mm16±0.1mm 2.3 ±0.2mm
191619.05±0.03mm16±0.1mm 2.3±0.2mm
Shaped PDC   Special Use

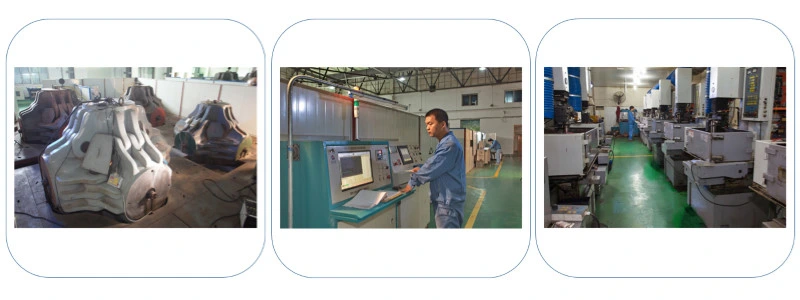

3. Company Introduction

      Wuhan Reetec Diamond Co., Ltd. (Wuhan Reetec for short) is a specialized company engaged in diamond composite materials research and development, design and manufacture, the main products PDC cutters and top dome PDC inserts are widely used in petroleum geological drilling and exploration, coal mining, road and bridge engineering excavation, as well as other areas of  abrasion resistant tools.

      With strong supports from the R&D system of Kingdream Public Limited Company(Kin gdream for short), Wuhan Reetec Diamond Co., Ltd was established and registered in Wuhan East Lake New Tech Development Zone on December 28, 2002. In 2006, Reetec passed ISO9001-2000 QMS Certification. In 2008, The Company was recognized as a National Hi-Tech. Enterprise, and passed ISO 9001-2008 QMS Renewal Certification in 2010.
PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits
PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits
PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits



PDC Cutter 1308/1313 for Oil and Gas Drilling PDC Bits

FAQ

Type of CompanyManufacturer
Founded in2002
Sample OrderAccept
OEMAvailable
Quality ControlEach product will be inspected in strict procedure before delivery
After-sales ServiceIf quality problem, goods can be return or replaceable.
Payment Terms50% in advance by T/T, delivery against balance
Delivery Time20-45 days after receipt
PackingPlastic box
Factory LocationWuhan, Hubei Province
