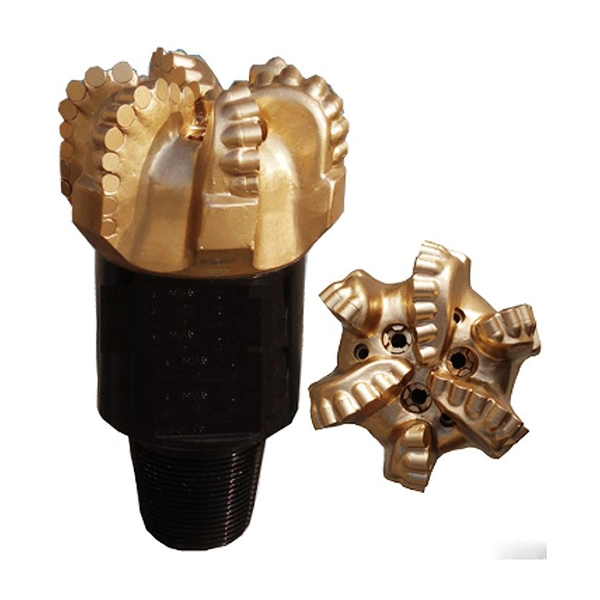

8 1/2\"PDC drill bit with 5 blades, PDC drill bit for oil and gas

Natural Diamond Core Bit  PDC drill bitBit Type 8-1/2"IADC CodeM432 M332Blade 6Cutter Size (mm) Φ16MMJunk Slot Area(in²) 13.2Nozzle Qty/Type 6NZGauge Length 2.2"Connection 4-1/2" API REGMake up Torque(KN.m) 24.1~26.5Rotary Speed(rpm) 60-260Weight

Featured Products

Natural Diamond Core Bit

PDC drill bit

Bit Type 8-1/2"
IADC CodeM432
 M332
Blade 6
Cutter Size (mm) Φ16MM
Junk Slot Area(in²) 13.2
Nozzle Qty/Type 6NZ
Gauge Length 2.2"
Connection 4-1/2" API REG
Make up Torque(KN.m) 24.1~26.5
Rotary Speed(rpm) 60-260
Weight on Bit(KN) 20-100
Max.WOB(KN) 130
Flow Rate(lps) 22-35


8 1/2

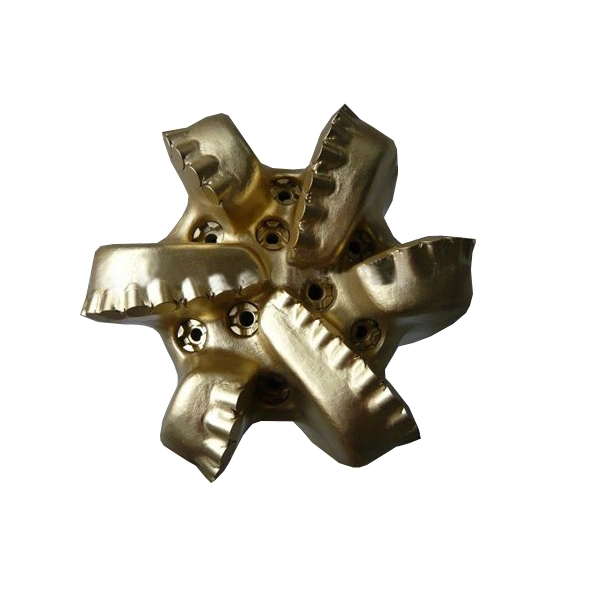

Matrix Body PDC Drill Bit

1.SOFT TO MEDIUM AND HARD FORMATION DRILLING

Short parabolic profile with lower cutter density helps to obtain better ROP in soft to medium hard formations with lower compressive strength and small hard layers.

Parabolic profile with medium to lower cutter density helps to obtain better ROP in soft to medium formations with low compressive strength and small abrasive layers.

Medium Parabolic profile with medium cutter density helps to obtain better ROP in medium hard formation with medium compressive strength and small abrasive layers.

Parabolic profile with heavy cutter density helps to obtain better ROP and long life in hard dense formations with high compressive strength and small abrasive layers.

2. DURASET GAUGE

Super strong material promotes gauge wear resistance to provide long bit life.

3.SPECIAL CUTTER LAYOUT

Balanced force cutter layout combined with straight blade design to improve the bit stability.

Balanced force cutter layout combined with backside cutter design to improve the bit life and impact resistance.

4. HYDRAULICS

Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

Big junk slot with balanced hydraulics design improves anti-balling ability within high penetration.

5. UNIQUE BACKRACK DESIGN

The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness .

6.UNIQUE BLADE DESIGN

Curved blade design makes the bit work stability.

Straight blade mixed with curved blade make the bit work stably.

Size available:6", 8-1/2", 9-1/2", 12-1/4",16", 17-1/2"

Steel Body PDC Drill Bit

1. SOFT TO MEDIUM HARD FORMATION DRILLING

Medium short parabolic profile with medium cutter density helps to obtain better ROP in soft to medium hard formations with lower compressive strength and small hard layers.

2. DURASET GAUGE

Gauge cutter promotes gauge wear resistance to provide long bit life.

3. HYDRAULICS

Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

4. UNIQUE BACKRACK DESIGN

The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness .

Size available: 8-1/2", 12-1/4"
